spiral mixer

spiral mixer is a heavy duty mixer with mobile bowl and two motors designed for industrial bakeries. Industrial-grade durable design,vertical hydraulic lifting system.The sturdy body and high-strength stainless steel spiral make the machine durable.
Keyword:
spiral mixer
E-mail: info@aocno.com
spiral mixer
Description

spiral mixer SPECIFICATION

Model

Bowl DimΦ*H(mm)

Power(kw)

Dough (kg)

Spiral speed(r/min)

Bowl speed(r/min)

SMR130B

Φ800*447

13.5kw

130kg

115/230

17.8

SMR200B

Φ900*547

22kw

200kg

102.5/205

11.7

SMR300B

Φ1098*547

27kw

300kg

100/200

12



spiral mixer PRODUCT DESCRIPTION

The dough mixer includes an removable dough mixer and an automatic tilting dough mixer, which can be used with automatic production lines, suitable for all kinds of dough, and can be used to make hamburgers, buns, toast, sliced bread, French sticks, hot dogs, etc. , the main models include 200kg, 300kg, more models for your choice.

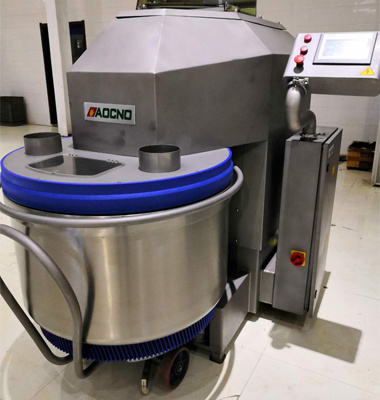

AOCNO SMR series is a heavy duty mixer with mobile bowl and two motors designed for industrial bakeries. Industrial-grade durable design,vertical hydraulic lifting system.The sturdy body and high-strength stainless steel spiral make the machine durable.

the characteristics of the removable bowl dough mixer are that the dough mixer can move the bowl, advanced design concept and stable structure, match with our lifter, can improve the production efficiency, and can process more dough per hour. In addition, it is also equipped with a programmable control panel, which allows us to better control the mixing process.

The bowl of our company adopts a slight inclination angle raising mechanism and a bowl hook to ensure that the bowl does not slip backwards during the tilting process. The lift can raise the bowl to a height of 2.6 meters, with angle of 25 degrees. The total weight of the lifting bowl and the inner can reach 450kg. The height of this bowl is 4 meters (+ the height of the rear bowl)

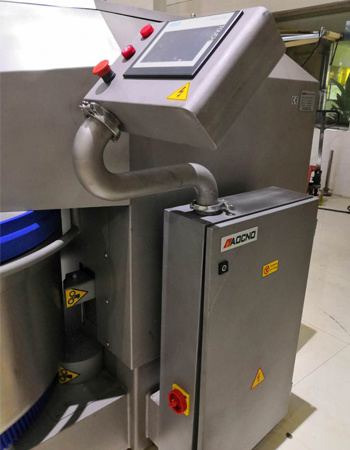

Sealed mixer bowl cover with 9-inch Siemens touch screen, more than 10 kinds of mixing programs can be set, automatic powder adding mouth, water inlet pipe can be reserved, and automatic powder adding system and automatic batching system can be connected.

The mixer with strong power, suitable for industrial production and various soft and hard dough and high-gluten dough, imported key components. The mixer is made of high-strength steel and stainless steel, which is durable and hydraulic power unit.

This mixer machine match with our dough dividing machine, which can adapt to a variety of baked food production machines lines and improve production efficiency.

It uses the different speed between the high-speed rotating spiral and the low-speed stainless steel bowl to push, pull, press, and kneading the dough to fully mixed and hydrate the dough with various raw materials to increase the water absorption of the dough and increase the dough strength.

With plastic-dipping surface, owning excellent corrosion resistance and appearance We can provide the following type of Power according to customers demands: 230V/50HZ/3PH、220V/60HZ/3PH、380V/60HZ/3PH
